Pipes

KAN-therm Push Platinum pipes utilize a multi-layer construction, with the use of stabilizing inserts.
PEXCc/Al/PE-HD Platinum pipes are manufactured of high-density polyethylene subjected to molecular networking by an electron beam. Laser- welded aluminum layer provides a total seal against oxygen diffusion, while significantly reducing thermal expansion pipe. The outer shell of high- density polyethylene PE-HD protects the aluminum layer against mechanical damage. Due to its design, the pipes do not have shape memory and can be easily changed.

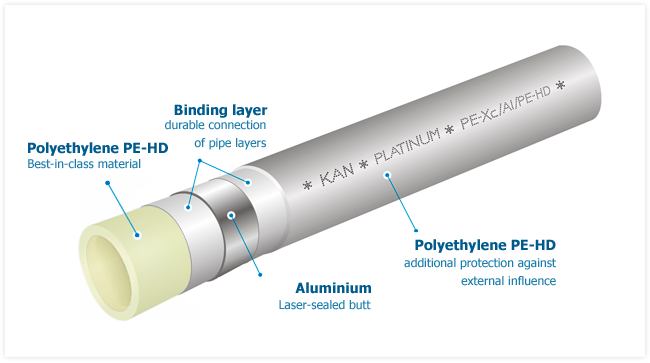

PEXCc/Al/PE-HD Platinum pipe construction

PEXCc/Al/PE-HD Platinum dimensions, unit weights, capacity of water pipes:



PEXCc/Al/PE-HD Platinum pipes

Nominal diameter

 External diameter Wall thickness Inner diameter Fittings dimensions Reel length Water volume
mm mm mm mm mm m l/m
14 14 2,25 9,5 14x2 200 0,071
18 17 2,8 11,4 18x2,5 200 0,102
25 25 3,7 17,6 25x3,5 50 0,243
32 32 4,7 22,6 32x4,4 25 0,401
