Pipes

The KAN-therm Push System offers two kinds of PE-pipes having similar working parameters: PE-RT (type II) and PEXCc. Characteristic for these pipes is a wide range of diameters: 12 - 32 mm.

PE-RT pipes are made of a PE-version (Dowlex 2388) of a higher temperature resistance (Polyethylene of Raised Temperature Resistance). The unique molecular structure of this material provides excellent mechanical properties and a high strength at high temperatures. Due to the material outstanding elasticity due to material properties elements of this material are easy to lay/mount even at low temperatures. An exceptional thermal and pressure stability of the material is decisive for a long life of pipe conduits.

P E-Xc pipes are manufactured of a high-density polyethylene subjected to molecular networking by an electron beam (the „c” method, physical – no chemical agents used). Such a polyethylene structure network causes the best high resistance to thermal and mechanical loads.

Both kinds of pipes are provided with a barrier (EVOH coating) preventing intrusion (diffusion) of the oxygen from the atmosphere to the heating water, therefore the character of these pipes is universal – they can be used both for heating systems and for water supply systems.

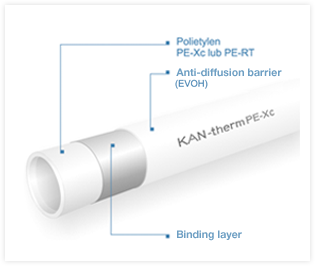

Design of the PE-RT or PEXCc KAN-therm pipes

Dimensions, specific weights, water volume of KAN-therm PE-RT and PEXCc tubes:

KAN-therm PE-RT and PEXCc tubes
DN	Outside dia. x wall thickness	Wall thickness	ID	Size series	Specific weights	Length of coil	Water volume
	mm x mm	mm	mm		kg/m	m	l/m
12	12 x 2,0	2,0	8,0	2,50	0,071	200	0,050
16	16 × 2,0	2,0	12,0	3,50	0,094	200	0,113
*18	18 × 2,0	2,0	14,0	4,00	0,113	200	0,154
18	18 × 2,5	2,5	13,0	3,10	0,125	200	0,133
25	25 × 3,5	3,5	18,0	3,07	0,247	50	0,254
32	32 × 4,4	4,4	23,2	3,14	0,390	25	0,423

* Optional diameter - please check max. working parameters of pipe for each scope of application.
